Nema 23 Stepper Motor 2 Phase 6 Wire
USD 10.00 USD

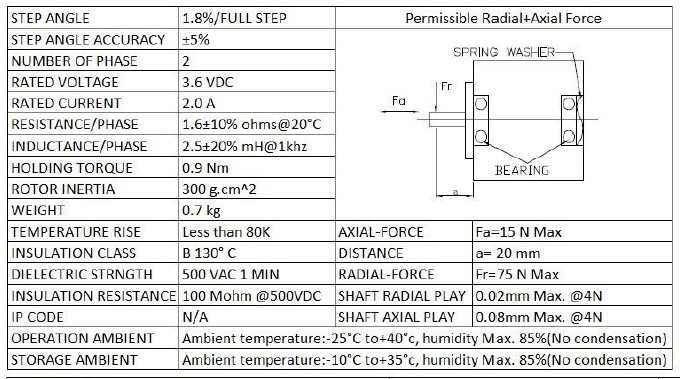

Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Unbranded/Generic |
| Full Step Angle | 1.8° (200 Steps) |
| Actual Rated Input Voltage | 3.6v |
| Resistance Per Phase | 1.6 |
| Shaft Diameter | 1/4 in |
| MPN | ELINCO KM57570L3-G200A |
| Insulation Class | B (Max 266°F) |
| Country/Region Of Manufacture | China |
| Holding Torque | 0.9Nm |
Motors are new, never run. Bought in anticipation of use in a production run but design change required different motor. Bought as is since unable to test Used for: robotics, CNC machines, robotics, animatronics. Made for extreme and precise positioning.
